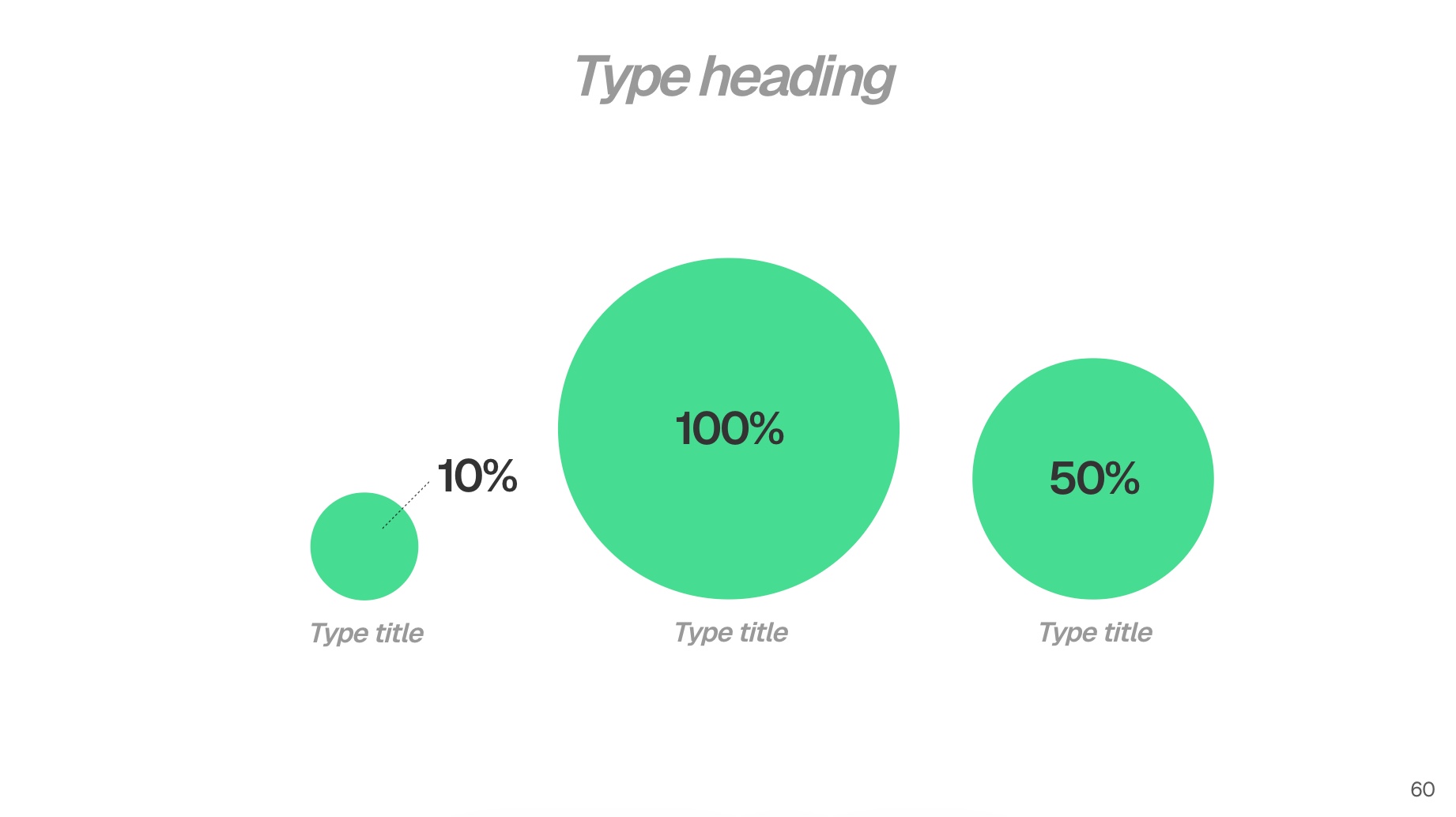

Compare Circles uses differently sized circles to show how data points relate to one another, giving viewers an at-a-glance comparison of each statistic. It is best for broad visual comparisons and can be formatted so values display as numbers, percentages, or currency depending on the presentation’s needs.

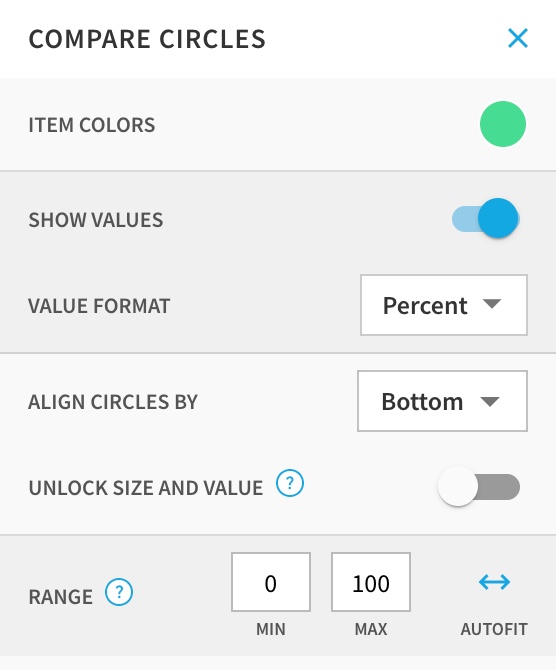

Compare Circles Properties
Properties in Action

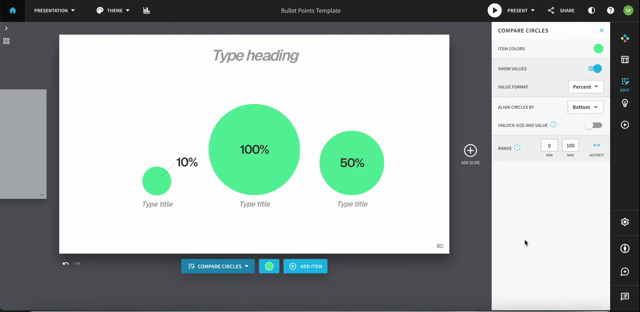

Item Colors
- You can customize your item colors with any of the colors available from your chosen theme.
Show Values
- You can either choose to include the values in your circles by toggling 'Show Values' either off or on.
Value Format
- You can select either Percentage, Number, or Currency for the value format of your circles.

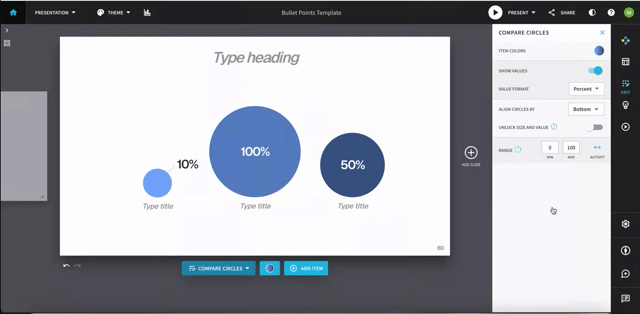

Align Circles By
- You can customize the alignment of the circles by either selecting Bottom, Middle or Top.
Unlock Size and Value
- Controls whether the size of the chart item is controlled directly by it's value. Turning on this setting can be useful if you wish to have more control over the relative sizes of the items in the chart-especially when the range of values is large and results in some very small sizes.
Range
- Sets the min and max for the values in the chart. You can edit these values if you want more control of the relative size of each item or if you want to increase the range that the chart represents without changing values. Clicking 'Autofit' will set the min to 0 and the max to the highest value in the chart.
Use Cases:
- Track data changes
- Point out trends or patterns
- Show data in percentages
